Features

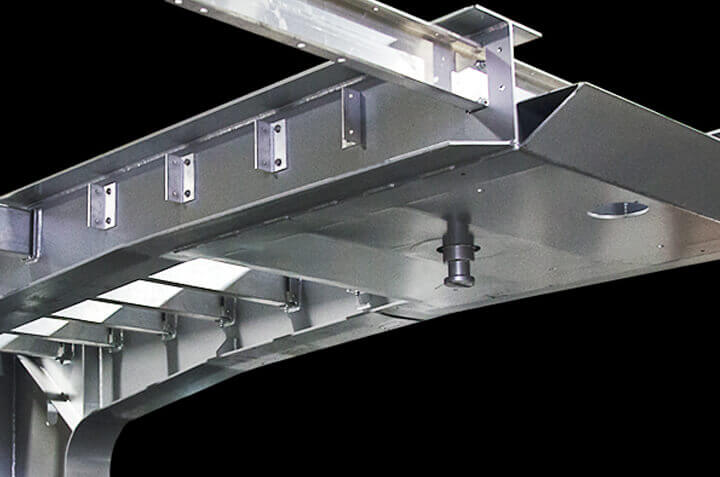

The goose neck of all Drop Decks is made of high strength steel to optimize weight and strength.

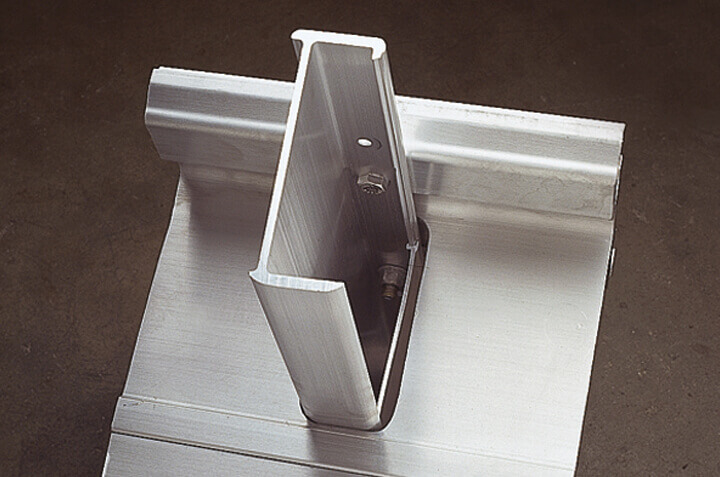

Solid one-piece cross members are designed with an offset web and a unique, reinforced inner extrusion that adds reinforcement between the main beams.

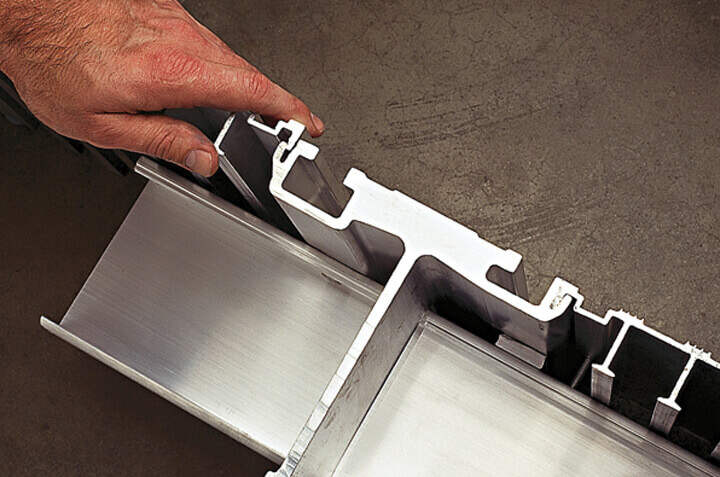

Innovative snap-in floor enables the floor to become part of the main beam (patent pending). In addition, the extruded inner flange allows cross member stress to be distributed over a much larger area.

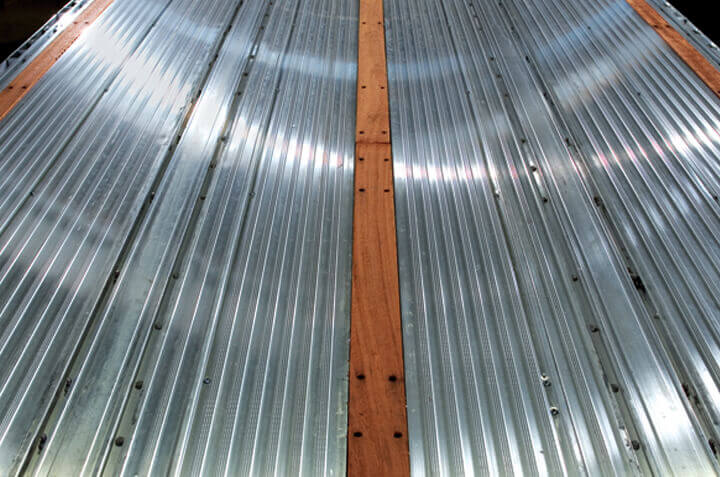

Standard three wood nailers offer the versatility you need to properly secure loads. Optional four wood nailers or four wood nailers with a center tie-down track is the setup for hauling coils or other loads where additional wood or tie-downs are needed.

Reitnouer’s unique two-piece bolted and bonded main beam is joined in the center, where stresses are minimal. Three-piece floating outriggers minimize the stress on the main beam.

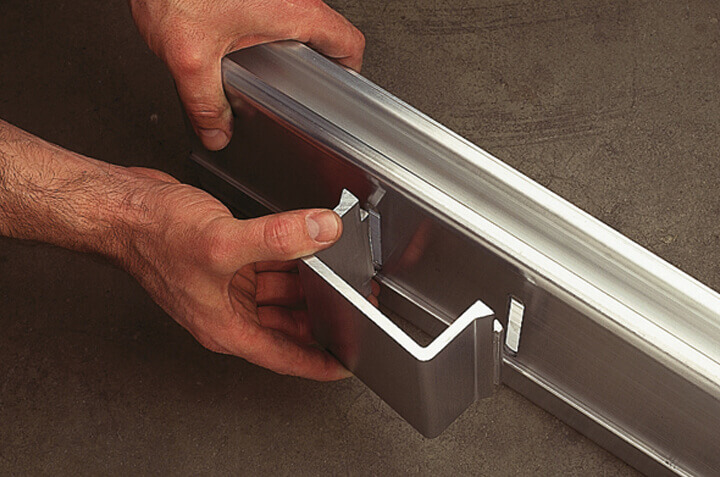

Snap-in pockets welded from rear offer superior strength in the pocket-to-side rail connection.

Movable, removable tie-downs come in various lengths and allow you to secure loads either along the side rails or along the main rails-or both.

Two-piece load levelers for the DropMiser offer lighter weight handling and placement anywhere along the trailer deck.

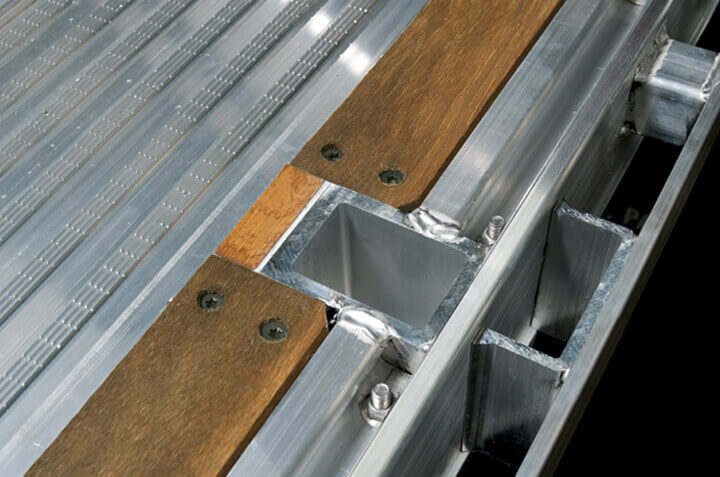

Optional log pockets enable use of heavy-duty stakes to secure logs. The number of pockets and pocket locations can be tailored to customer specifications.

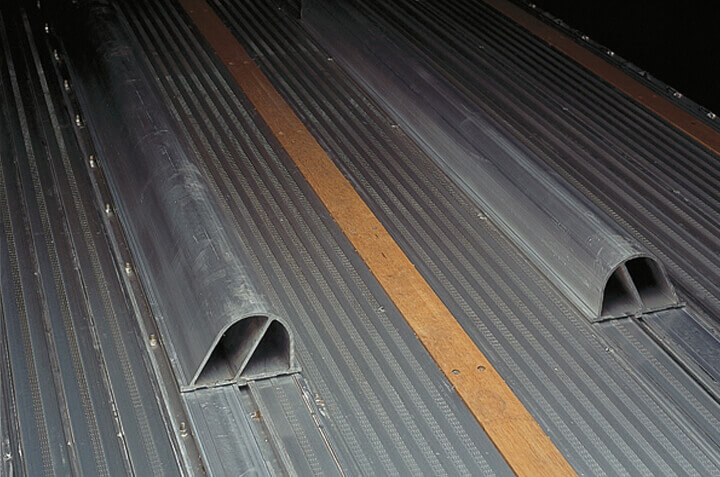

Solid coil racks eliminate the need for wood and optimize safety by locking into the main beams, preventing coils from sliding side to side.

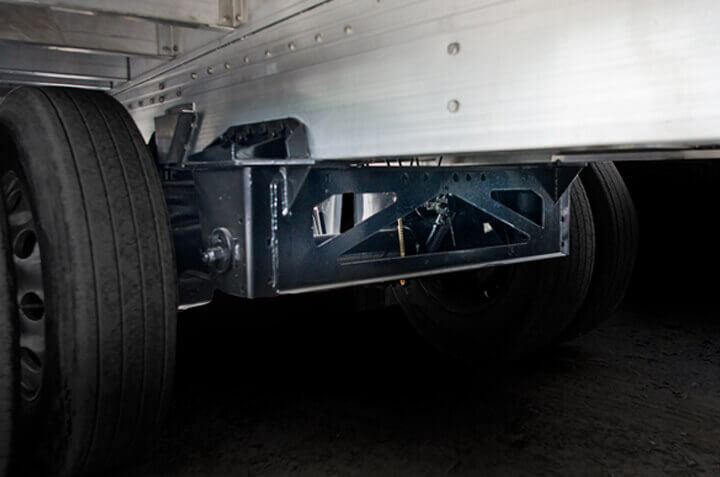

Suspension hanger boxes feature a Reitnouer patented clamp-mount design and are boxed in from side-to-side to minimize the stresses that are transferred to the main rails.

Patented coil blocks offer more portability and ease of storage, but still offer the “locked-in” safety of the larger solid coil racks.

The rear end of Reitnouer trailers incorporates suggestions made by the people who use our trailers every day. The corners have been made stronger, the light panels are protected top and bottom, the rear bumper is one piece and fully enclosed, and horizontal bumpers were added for those dock plates pushed up by the rear of the trailer.

Reitnouer trailers feature the finest and most advanced wiring and lighting systems available. All wiring harness connections are Amp type, the finest and most corrosion-resistant in the industry. No detail was spared on your lighting requirements.
